16 Ports FTTA Nap Outdoor Fiber Termination Box IP65 With Waterproof Connectors(1)(1)

1/8

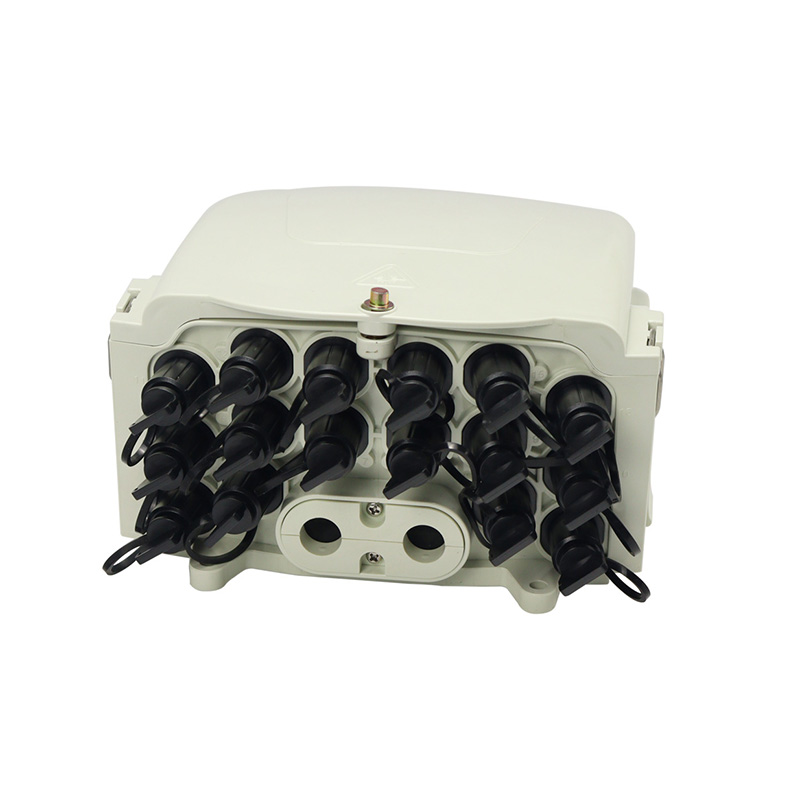

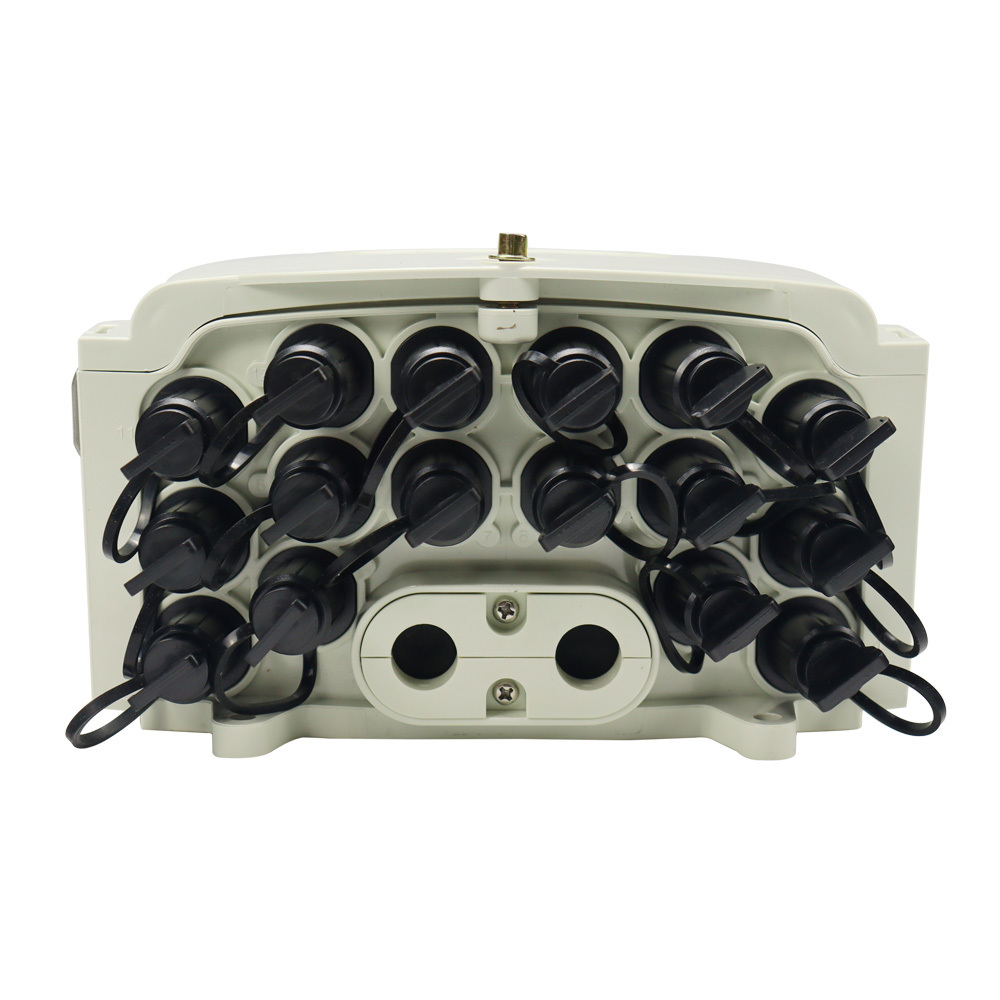

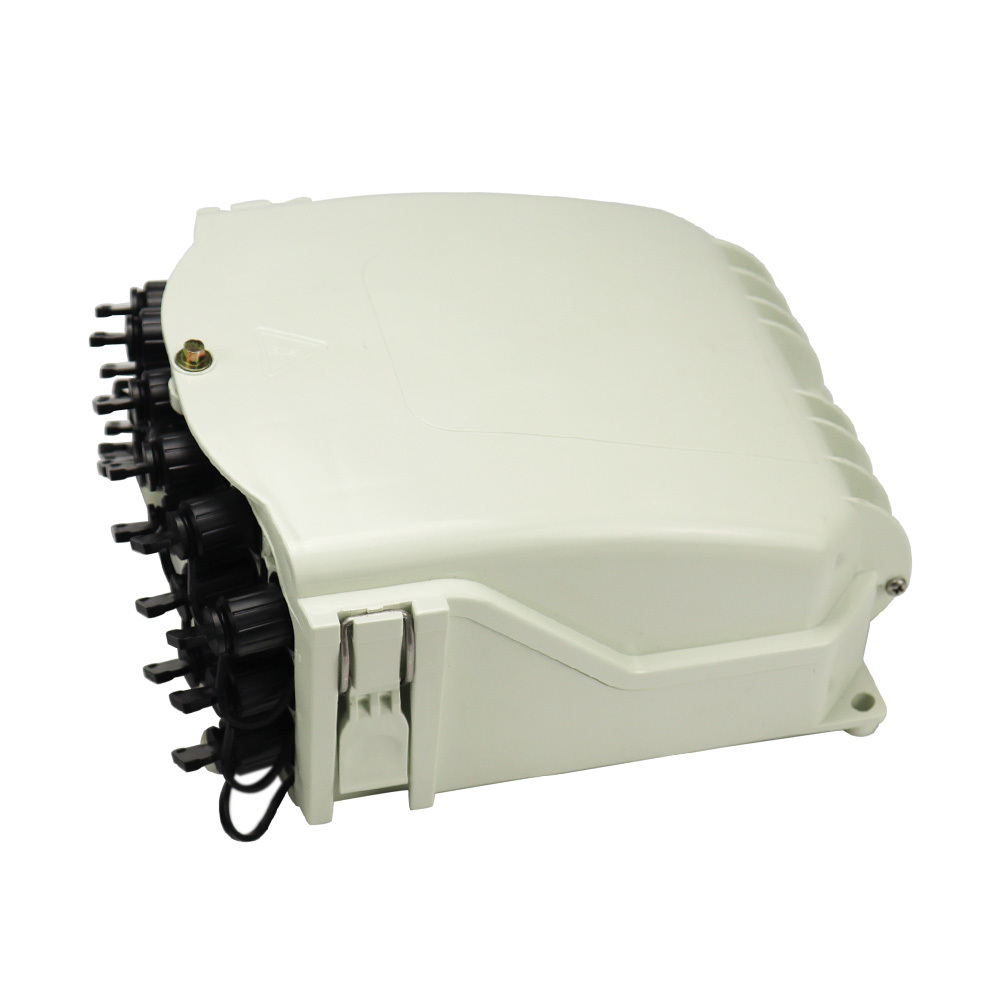

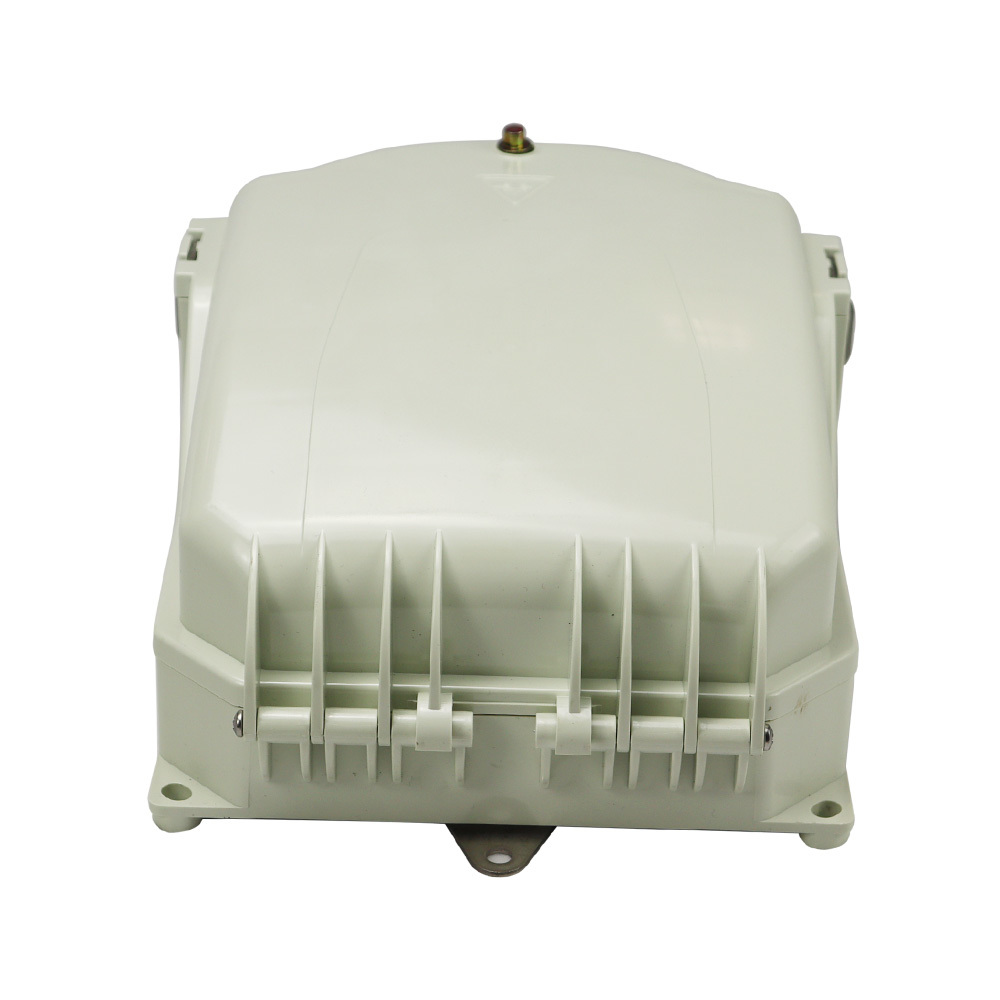

16 Ports FTTA Nap Outdoor Fiber Termination Box IP65 With Waterproof Connectors(1)(1)

复制链接

脸书

领英

Product No. BY-ODB16

Types Distribution Box

Secification 16 ports

Material ABS/PE

Color Black-Custom

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

Waterproof outdoor Mini SC APC Fast filed assembly connector which compatiable with optitap adapter. Suitable for drop flat cable.

It is also very convenient for terminal operation, according to different lengths.

Specification

Name	FTTA Nap Fiber Distribution Box with HuaweiWaterproof Connectors	Model
Size(pic 1)	ABC:208X241X117mm	Installation Size(Pic 2)	DEF:179X212X126 G*H:21X52
In-put Port	Cable diameter:12m	Output Port	Suitable for HUAWEI Type Waterproof connectors
Material	PC+ABS	Protection Grade	IP65

Features

1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

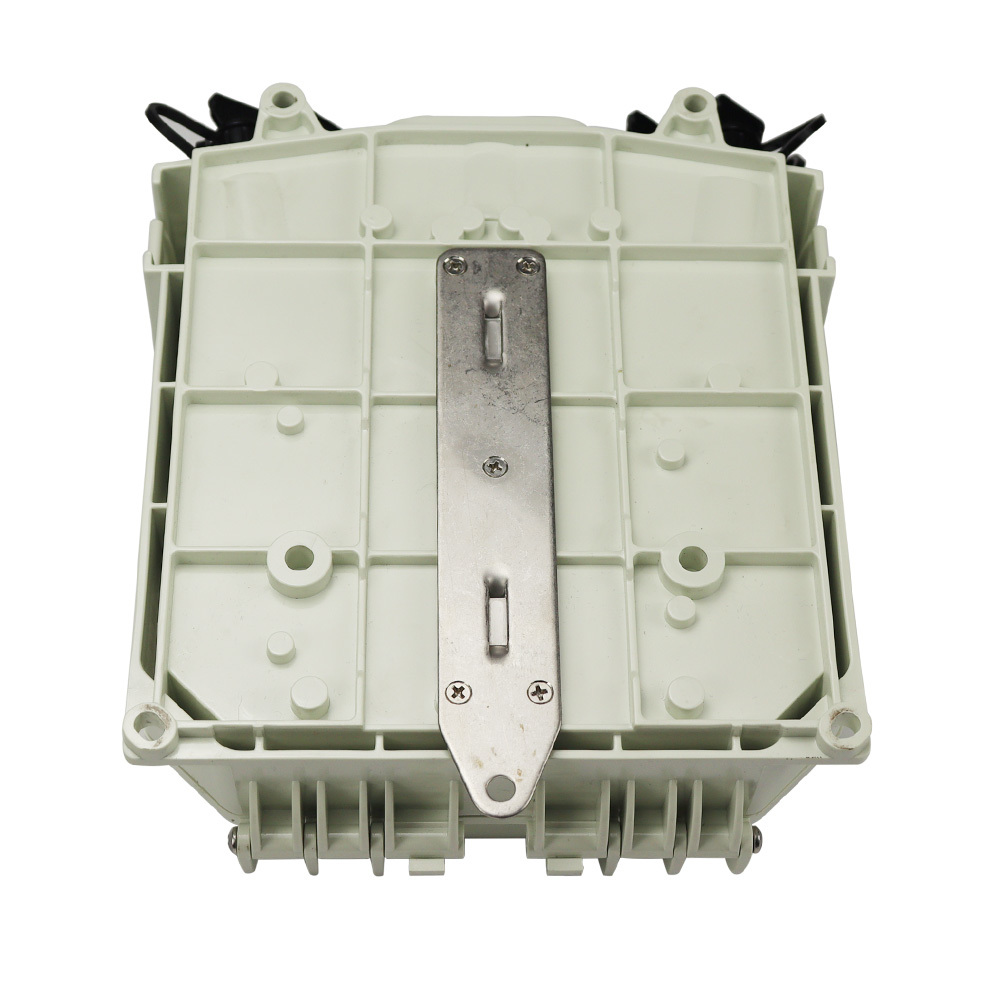

6. The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification

Name	FTTA Nap Fiber Distribution Box with HuaweiWaterproof Connectors	Model
Size(pic 1)	ABC:208X241X117mm	Installation Size(Pic 2)	DEF:179X212X126 G*H:21X52
In-put Port	Cable diameter:12m	Output Port	Suitable for HUAWEI Type Waterproof connectors
Material	PC+ABS	Protection Grade	IP65
