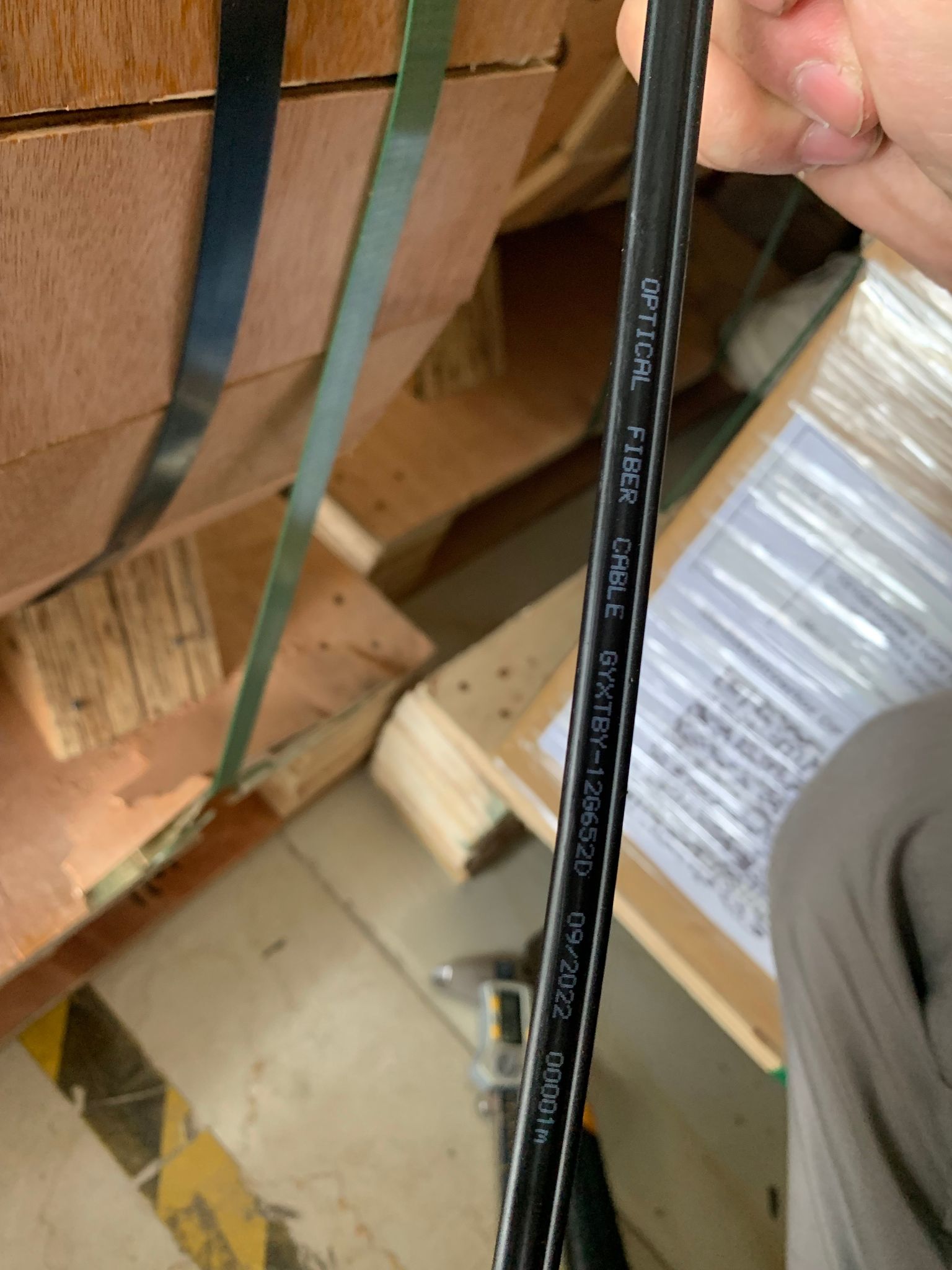

GYXTC8Y FTTH Optical Fiber Cable

复制链接

脸书

领英

Drop(flat) cable is generally used as connection part in last 1 kilometer between optical distribution point and users' premise.Its compact structure provide the advantages of light weight and

Product No. BY-GYXTC8Y

Types Fiber Optic cable

Secification Up to 12 Cores

Material LSZH jacket

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

Optical Fiber Characteristics

Item		Description
Fiber Type		SM G652D
Mode Field Diameter (um)		9.2±0.4
Cladding Diameter (um)		125±1
Coating Diameter (um)		250±15
Core Concentricity Error (um)		≤0.6
Cladding Non-circularity (%)		≤1.0
Zero Dispersion Wavelength (nm)		1300~1324
Zero Dispersion Slope		≤0.092ps/(nm²·km)
Chromatic Dispersion @1285~1325nm		≤ 3.5 ps/(nm.km)
Chromatic Dispersion @1550nm		≤18.0 ps/(nm.km)
Radius of Curvature (mm)		30
Polarization Mode Dispersion Coefficient (Max Individual Fiber)		≤0.2
Cable Cut-off Wavelength (nm)		≤1260
Proof Test (kpsi)		≥100
Macro bending Loss (dB)	60mm radius, 100turn	≤0.1 @1625nm

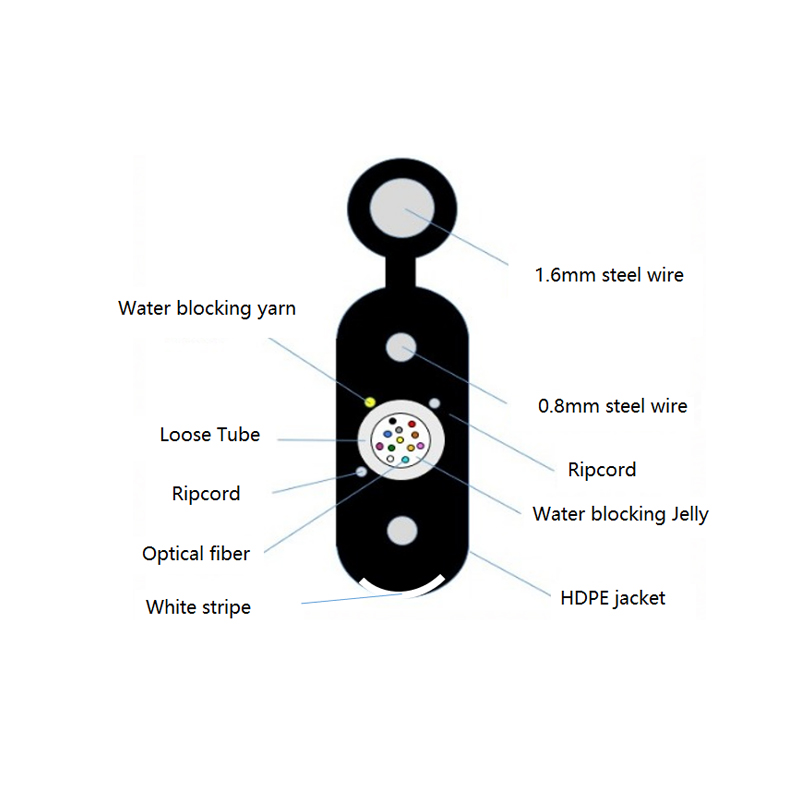

Cable Specifications

Item		Description
Cable Diameter		(4.0±0.3) ×(10.0±0.3)mm
Approx. Cable Diameter		(4.0×6.0)±0.3mm
Approx. Steel Wire Sheath Outer Diameter		3.2±0.3mm
Central Strength Member	Material	Phosphating steel wire
Central Strength Member	Outer Diameter	0.8±0.02mm
Steel Wire	Material	Phosphating steel wire
Steel Wire	Diameter	1.6±0.03mm
Optical Fiber	Type	G .652D
Optical Fiber	Numbers	12

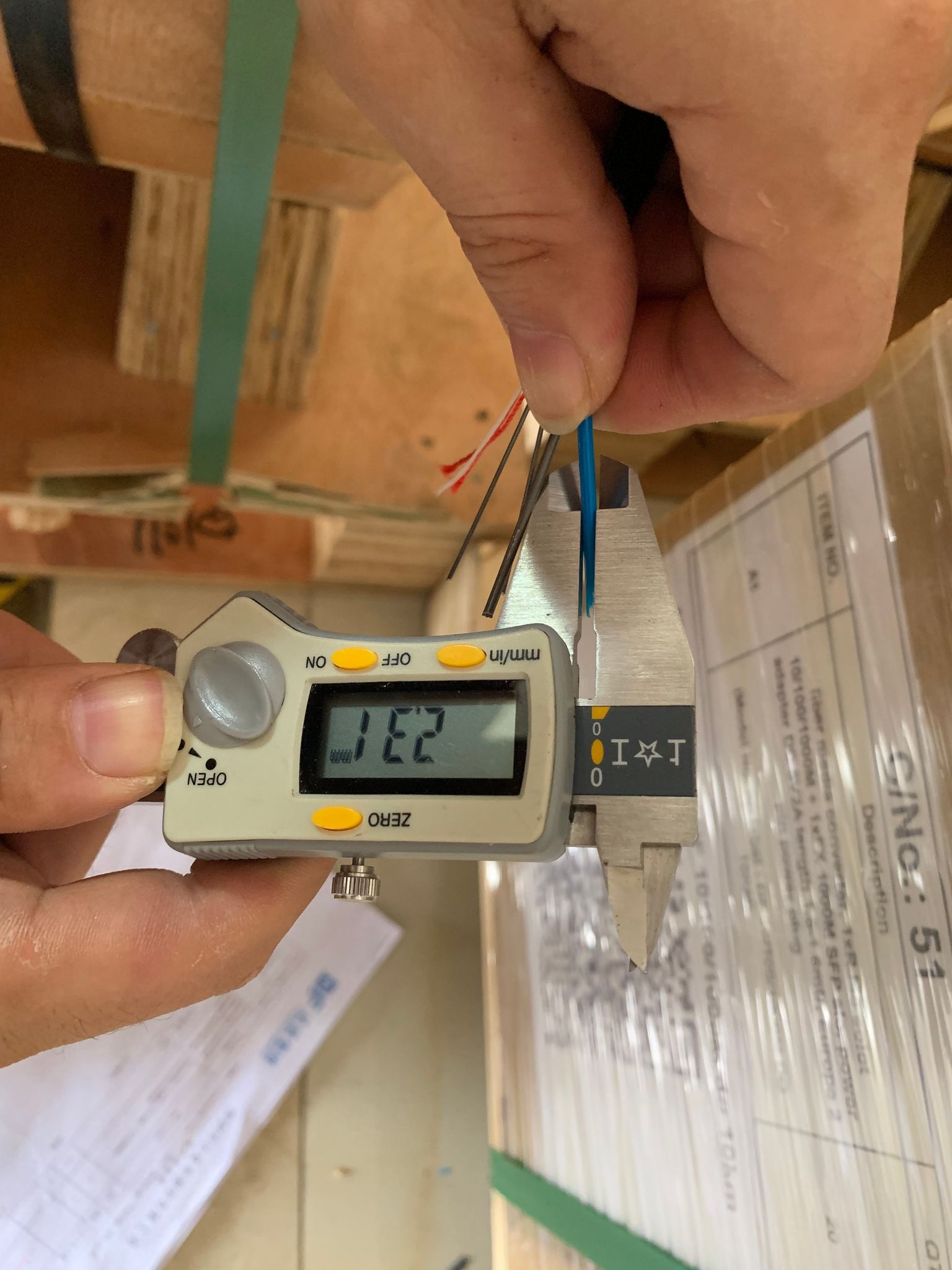

Loose Tube	Outer Diameter	2.2±0.1mm
	Material	PBT
	Water Blocking	Tube Filling Compound
	Color	Blue
Water Blocking	Material	1500D Water blocking yarn
Water Blocking	Installation Orientation	Spiral Winding
Ripcord	Material	1500D
Ripcord	Color	White
Sheath of Cable	Material	BLACK HDPE With white stripe
Fiber Attenuation Coefficient in Cable	dB/km(1310nm)	≤0.36dB/km
Fiber Attenuation Coefficient in Cable	dB/km(1550nm)	≤0.22dB/km

Mechanical and Physical Characteristics

Item	Test Method	Test Criteria
Tensile Loading	ShortTerm:2000N; LongTerm:1000N; Mandrel dia.: 400㎜; Length: ≥ 90m; Maintained time: 10 mins.	Attenuation change: ≤ 0.1 dB @1550 nm
Compressive Loading	Load:500N; PlateSize:100mm*100mm; Maintained time: 10 mins.	Attenuation change: ≤ 0.1 dB @1550 nm
Impact Resistance	Radius of impacted surface: 25 mm; Impact Force: 5 N.m; No. of impact: 3	Attenuation change: ≤ 0.1 dB @1550 nm
Cyclic Flexing	Mandrel dia.: 50㎜; Bending angle: ±90°; No. of cycle: 25	Attenuation change: ≤ 0.1 dB @1550 nm
Cable Twist	Length: 1m; Load: 10 N; Twist angle: ±180°; No. of cycle: 10	Attenuation change: ≤ 0.1 dB @1550 nm
Temperature	Operating: -20℃~+70℃ Store/Transport: -20℃~+70℃ Installation: -20℃~+60℃
