12 fibers GJYX(F)CH Self-Supported Flat Drop Cable

复制链接

脸书

领英

Drop(flat) cable is generally used as connection part in last 1 kilometer between optical distribution point and users' premise.Its compact structure provide the advantages of light weight and

Product No. BY-GJYX(F)CH

Types Fiber Optic cable

Secification Up to 12 Cores

Material LSZH jacket

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

GJX(F)H is generally used as connection part in last 1 kilometer between optical distribution point and users’ premise. Its compact structure provide the advantages of light weight and small size. In the middle of cable, it’s fiber, which can be 1-4 cores. On both sides, there’re two parallel steel wire(FRP) to strengthen tensile of cable; then, adding a self-supporting messenger. At last, sheathed with LSZH/PE/PVC material.

The typical GJYXFCH/GJYXCH self-supporting bow-type drop optical cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).

Characteristics

Novel groove design, easily strip and splice, simplified

installation and maintenance, higher tensile strength

Suitable as cable extending from outdoor (as aerial cable)

to indoor

Low smoke, zero halogen and flame retardant sheath,

environment-friendly, good safety.

Standard

Comply with standard YD/T1997-2009

Structure and technical parameters

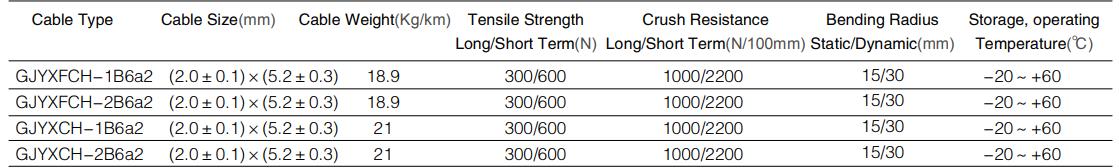

Structure and technical parameters.jpg

Delivery Length

Standard Reel Length: 2000m; Other lengths available on request

Our packaging box can not only achieve 7 layers but also can bear the weight of two adults, the picture below is sent by our customer.

Self-support FTTH drop cable Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm				≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	—
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500MHZ·km	≥500MHZ·km
Bandwidth (Class A)	@1300nm			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Self-support FTTH drop cable Technical Parameters

Cable Type	Fiber Count	Optical cable Diameter (mm)	Optical Cable Weight (Kg/Km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100m)	Bending Radius Static/Dynamic (mm)
GJYXCH	1 core	2.0×5.0	20	100/200	1000/2200	15D/30D
GJYXCH	2 core	2.0×5.0	20	100/200	1000/2200	15D/30D
GJYXCH	4 core	2.0×5.0	20	100/200	1000/2200	15D/30D
GJYXCH	6 core	2.0×5.5	21	100/200	1000/2200	15D/30D
GJYXCH	8 core	2.0×6.0	23	100/200	1000/2200	15D/30D
GJYXCH	12 core	2.0×7.0	25	100/200	1000/2200	15D/30D
